Electric Trolley Rental
The Enerpac ETR-Series Trolley System is comprised of electrically driven trolleys which can carry heavy loads horizontally along a fixed, guided track system. With a 50-ton (500kN) and 100-ton (1000kN) capacity per trolley, load movements are more stable due to the continuous movement and ability to precisely control travel speed including acceleration and deceleration, offering a clean operation.

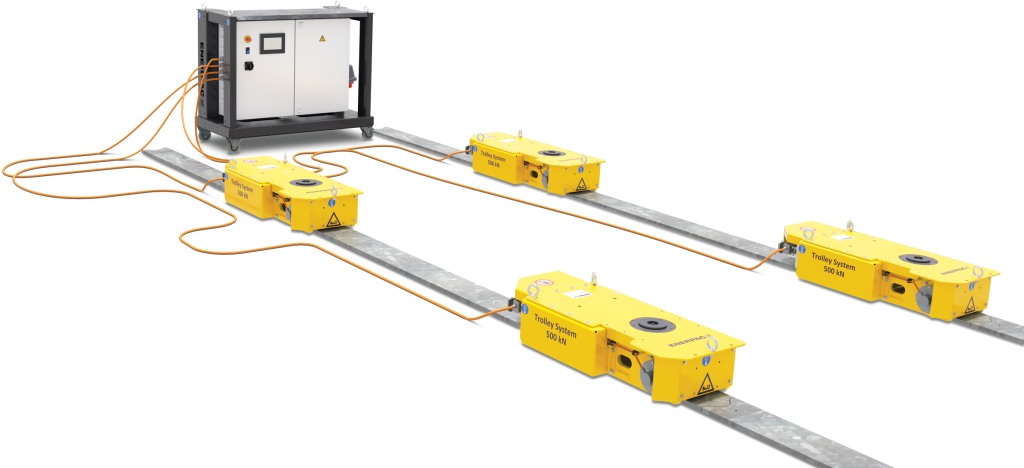

A typical system includes 4 trolleys, 2 tracks, and 1 controller. Each trolley is tested under witness of Lloyd’s Register. Trolley Systems are statically tested at overload and are subject to a loaded functional test. For a safe and efficient method to move assemblies through production stations, the trolley system is the ideal solution as it is suited for repetitive movements and can be easily configured to accept a wide variety of load configurations.
Benefits Over Traditional Skidding Methods
SYNCHRONIZED & CONTINUOUS MOVEMENT
The Trolley System provides automatic synchronization of traveling with an accuracy of 0.39 inch (10 mm). An operator has the ability to combine up to eight trolley units synchronized together.
Sensitive equipment cannot withstand frequent stops and starts in movement without risking damage. Enerpac Trolley Systems are controlled by an inverter which allows speed to ramp up smoothly, maintain continuous movement and slow down smoothly preventing hard starts and stops. The standard control panel includes software with pre-programmed ramp up and down speeds.
REDUCED RISK, OPTIMIZED SAFETY
Traveling on guided low-profile tracks with controlled synchronization eliminates risks of moving large loads at overhead height. With the Trolley System user can move loads at ground level, on a dedicated path and eliminate swinging loads.
EXPEDITES PROJECT COMPLETION
The Trolley System speeds up job completion with 164 ft/hour (50 m/hour) loaded travel speed; 328 ft/hour (100 m/hour) unloaded/reset speed.
ELECTRIC TROLLEY FEATURES
- 55-110-ton capacity per trolley unit
- High transport speed, 83-164 feet/hour
- Suited for repetitive movements
- Runs on pre-constructed steel beams
- Ease of maintenance – long maintenance intervals and no consumables
- Clean usage – electric driven
- Built in synchronization – no need for forced external mechanical connection to synch movements.
- Easy transport – fits in a container
- Modular system – expandable for project need
