Ring Climbing Cylinders
Holmatro Ring Climbing Cylinders provide incremental lifting height up to 23.5”, much more than a traditional hydraulic cylinder. Starting at under 12” retracted, each portable, ergonomic cylinder has a lifting capacity of 115 tons but weighs only 50 pounds and features a compact footprint. Its innovative design eliminates the need for stacking wood or filler blocks which expedites the lifting process. With the addition of a Split Flow Pump the operator can safely and accurately lift, lower and hold a load in place with all points synchronized. Engineered Rigging has Ring Climbing Cylinders in our bare rental fleet. As an authorized Holmatro distributor, we also sell new systems.
Features That Will Transform Your Job Site
- Efficiency: Eliminate crib stacking/unstacking for faster job completion.
- Precision: Engineered rings guarantee the load is exactly where you expect it to be.
- Power: 115-ton load capacity per cylinder.
- Portability: Our ergonomic cylinders weigh just 50 lbs. each which reduces crew strain.
- Compact Footprint: Ability to execute challenging lifting operations in limited space.
Ring Climbing Cylinder Specifications
Technical Specifications
Max Working pressure
10,000 PSI
Lifting Capacity
115 tons
Stroke
5.1 inches
Close Height
11.8 inches
Oil Content (Out)
63.4 cubic inches
Return Type
Hydraulic
Material
Aluminum
Diamater
7.68 inches
Weight
50.8 lbs
Set Components
Stacking Rings
Stacking Ring, Anodize Black (6)
Insert Blocks
Start Insert Block, Anodize Clear (1)
Insert block, anodize black (4)
Accessories
Fork to safely place the stacking rings (1)
Ring Climbing Cylinder Applications
- Bridge bearing replacement
- Bridge construction & demolition
- Unload cargo from SPMT or trailer to foundation
- False work removal

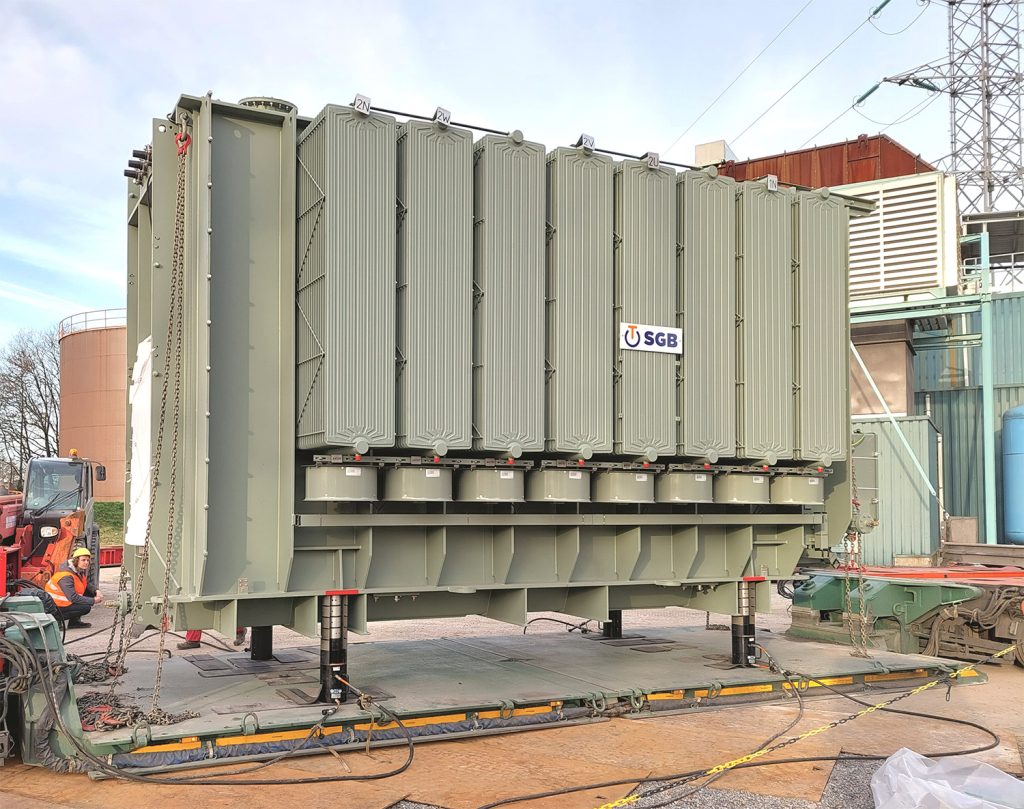

- Installing large industrial components like transformers
- Heavy/Oversized machinery moves
How Does A Ring Climbing Cylinder Work?
Holmatro Ring Climbing Cylinders provide incremental lifting height up to 23.5”, much more than a traditional hydraulic cylinder. Starting at under 12” retracted, each portable, ergonomic cylinder has a lifting capacity of 115 tons but weighs only 50 pounds and features a compact footprint. Its innovative design eliminates the need for stacking wood or filler blocks and expedites the lifting process. With a stroke of 5.1 inches, the solution can safely lift and mechanically secure a load. With the addition of a split flow pump the operator can safely and accurately lift or lower the component into place with all points synchronized.
